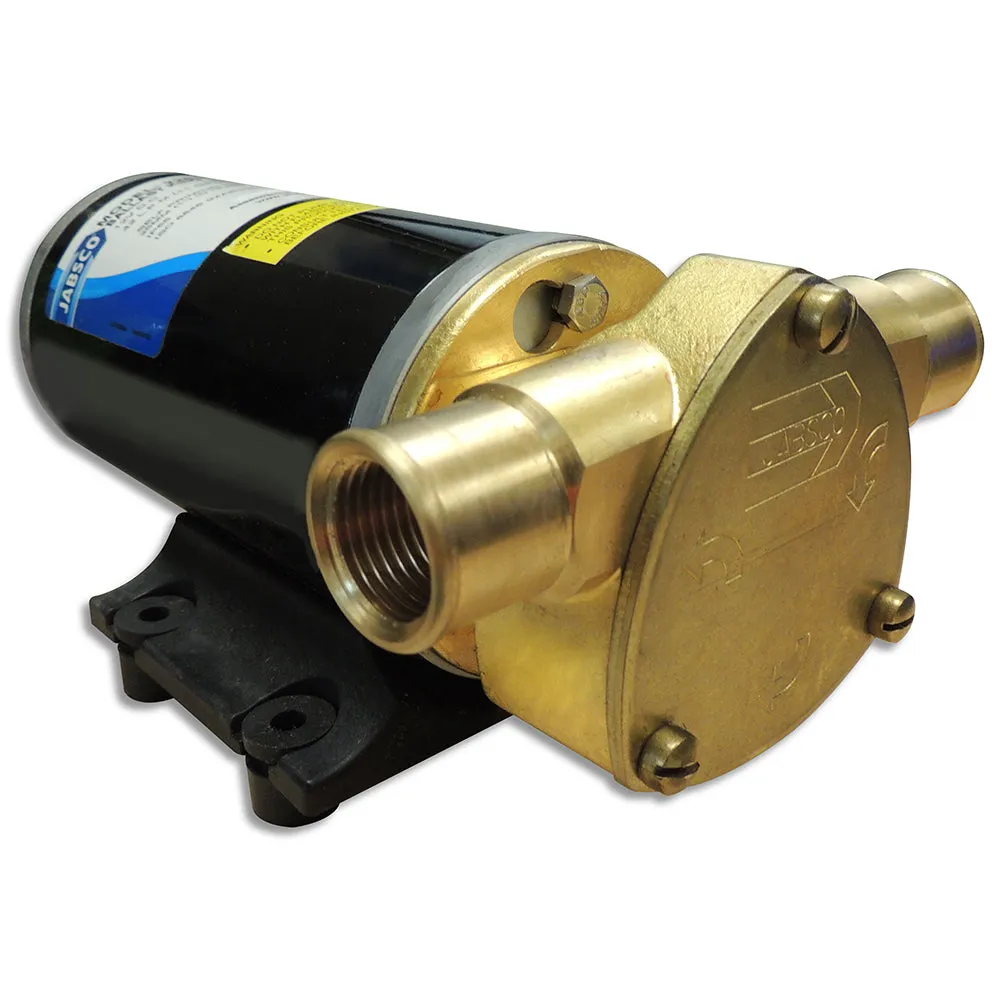

Ballast King Bronze DC Pump without Switch - 15 GPM

Wakeboard and Ski Boat Ballast Pump

Features:

• Flow rate: 15 US gallons/min (57 Litres/min)
• Self-priming from dry up to 1.2m (4ft)
• Adds approx 125lbs (56kgs) of ballast per minute
• Reversible to both fill and empty tanks
• Simple design means fewer wearing parts.
• ISO 8846 MARINE (Ignition protection).

Applications:

The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty.

 Specifications:

• Body Materials: Bronze
• Impeller: Jabsco Neoprene compound
• Seal: Lip Type
• Port(s): 1/2" Internal Pipe Threads 1" External Hose Barb
• Voltage: 12 (Vdc)
• Amp Draw: 19 (amp)
• Fuse Size: 25 (amp)
• Motor Type: Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible
• Duty Cycle: 30 Minutes Max
• Dimensions: 3 5/8 x 8 x 4 3/4 (inches)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to .

Specifications:

• Gallons Per Minute: 15 GPM
• Volts: 12v
• Box Dimensions: 6"H x 6"W x 12"L WT: 8.6 lbs
• UPC: 671880626286
